HOME >> PRODUCT >> Slurry Pump >> LZG Series Medium Duty High Head Slurry Pump
| Working Range: | |
| Discharge size: | 65mm-300mm |
| Capacities to: | 1920 m3/h |
| Heads to: | 94 m |
LZG Medium Duty High Head Slurry Pump:
LZG(P) slurry pump is horizontal,single-stage,single-suction,cantilever,double-casing,centrifugal slurry pump.The pump rotates in clockwise viewed from the drive end.The wet parts of LZG and LZG(P) pump at the same outlet diameter can be interchangeable.Their outline installation dimensions are one and the same.For the drive part of the series LZG(P)
Applications:
The slurry pump can be used for seawater ash-removing to prevent it from corrosion of seawater,salt and mist,and electrochemical corrosion.It is widely used for handling abrasive and corrosive slurry in electric power,metallurgy,mine,coal,construction material and chemical industry departments,especially for removing ash and sludge in electric power station.

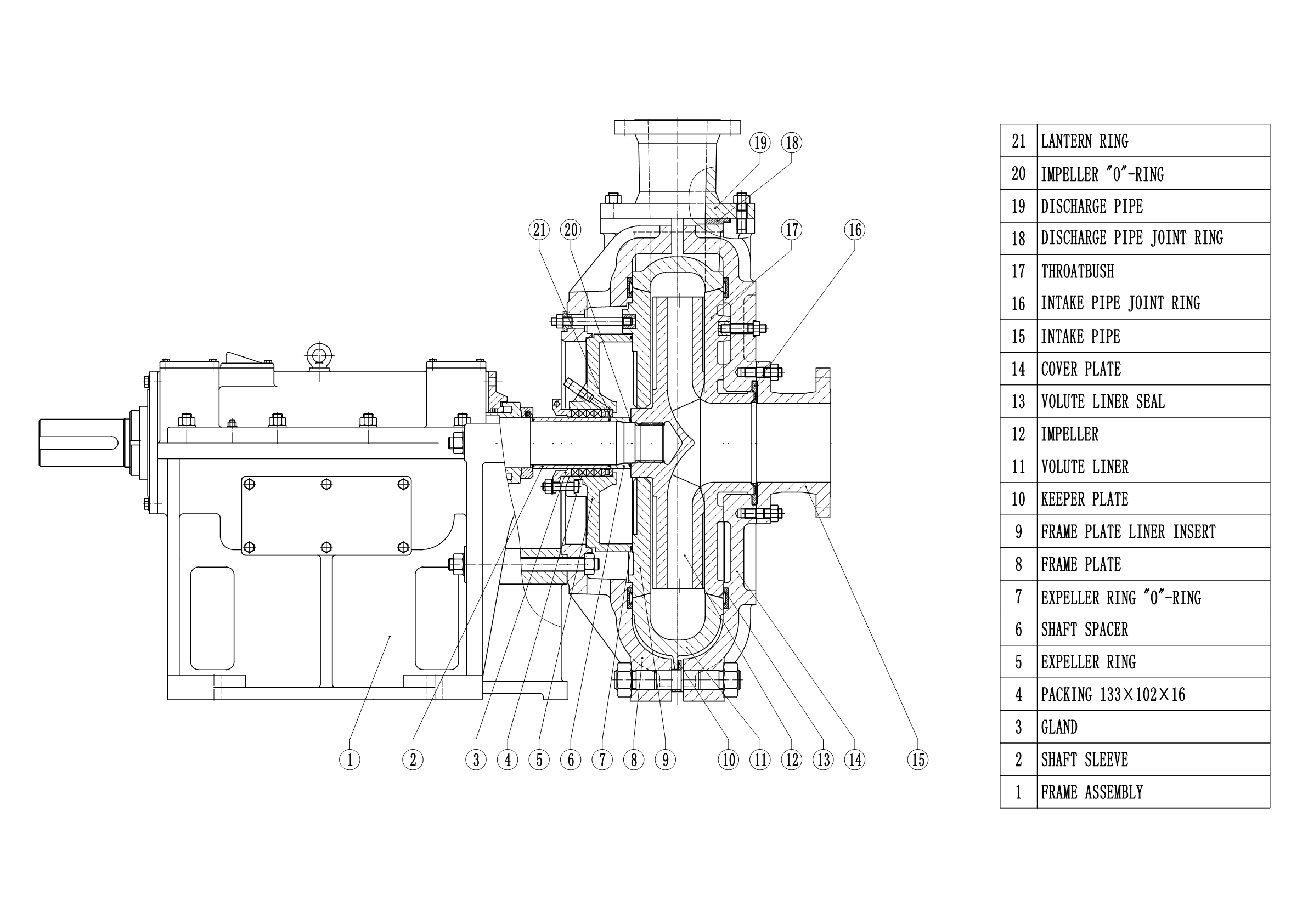

Pump Structure:

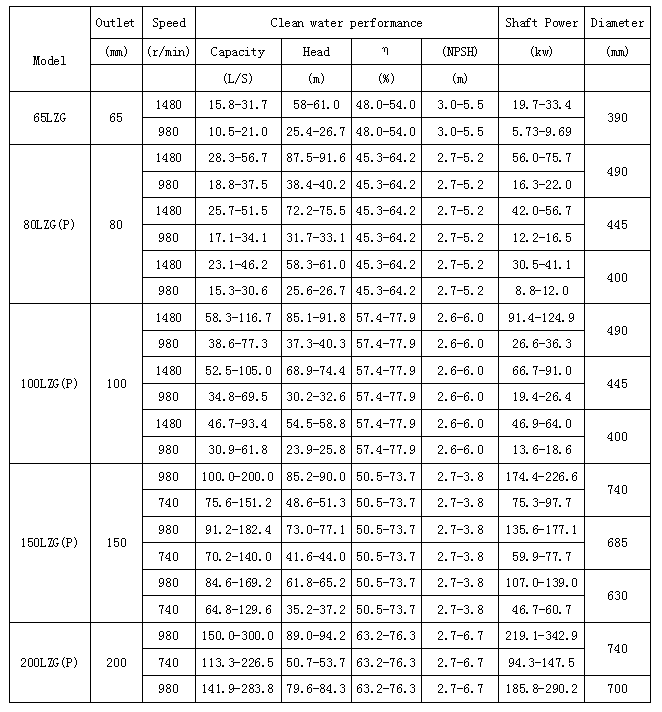

Clear Water Performance:

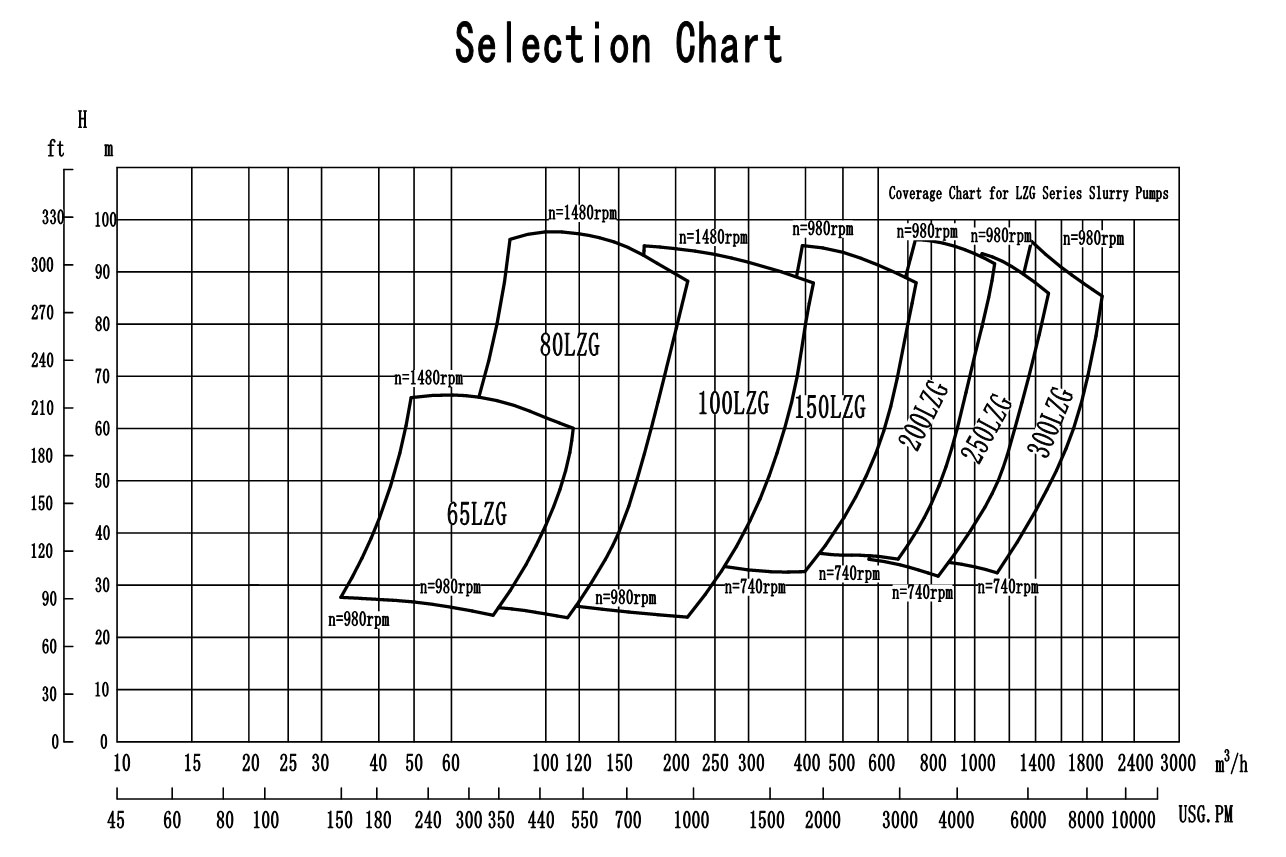

Pump Selection Chart:
